Wood Chipper
Drum Wood Chipper
Features Standarized
Drum Wood Chipper LDBX Series
- Available for all kinds of materials, including Palm wastes (PKS, EFB), wasted veneers, all kinds of logs, coconut shell, etc.
- Equipped with quenched blades 9CrSi, or special blade steel H12, specialized in processing materials with high toughness, also very durable with twice lifetime than normal blade steels, especially efficient for crushing plywood veneers.
- Able to produce wood chips with even shapes and size, 30-50mm chips.
- Equipped with customised famous brand Type-R Harden Gear reducers to provide smooth material feeding, guarantee the overall performance; Also it’s easy to operate and maintain, outstandingly durable and robust.
- Applying original imported SKF bearings and high precision processed shafts to guarantee the performance.
- Using frequency conversion speed control to control the material flow;
- Stable and high capacity is guaranteed when processing any kinds of materials, and with special modification the drum chipper could smoothly crushing plywood veneers in extraordinary efficiency.
Features Advanced
Fine Wood Chipper LDBX PF Series
- LDBX-PF Series of Advanced Fine Wood Chipper is the derivative updated product from traditional drum wood chipper, absorbing all advantaged but with much stronger power and fortified core parts.
- Applied for customer demanding wood chips to be less than 20mm, LDBX-PF series will be the best choice for production with fine output and smooth operation.
- Main shaft specially fortified with thicker arc shell and Stainless Welded Layer against high load bumping and rotaion, supporting LDBX-PF machine to run smoother and stabler.
- Available materials: Unprocessed woods, like wood logs, branchesl Veneers also works perfectly. But the blades are extremely weak to panel materials with nails, huge iron pieces and other irons, will do harm to the blades.
- Metal detector is recommended in the utility of LDBX-PF chippers, for long term smooth operation without uneccessary exchange and polishing of the knives

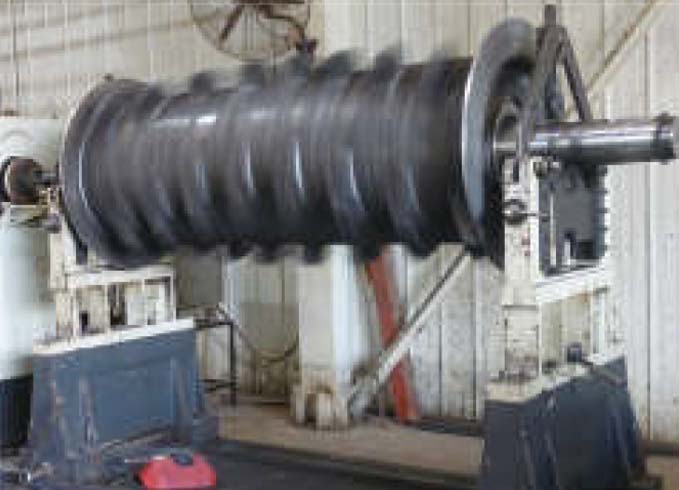

Structure:
All chippers are designed in Heavy-Duty, as well as Foundation Free structure, allow the chippers to chipper to be continue operated and stay rock solid.

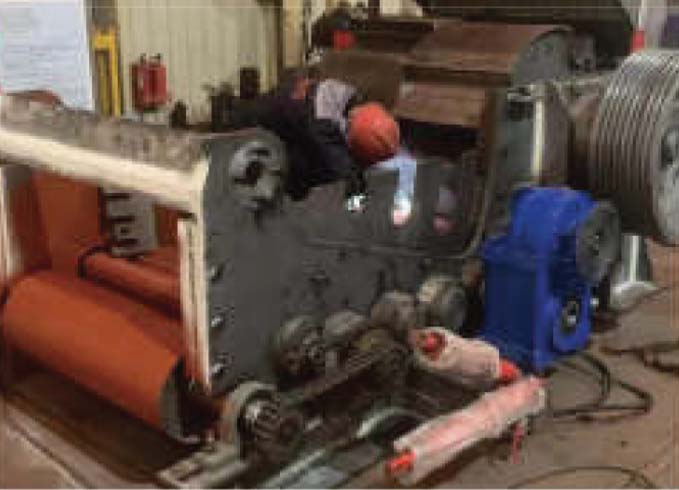

Quality:
High reducers, feeding unit and cutting assembly makes the operation butter smooth, the high quality wood chips could always be fluently produced and discharged.

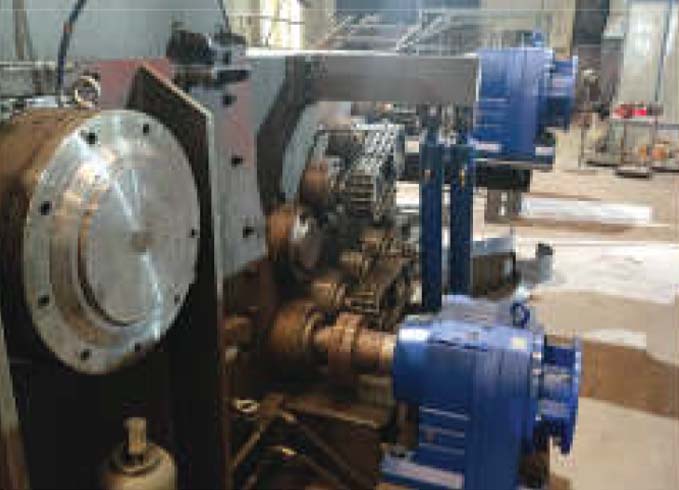

Precision:
Overall machine is underproduction by CNC automated factory, every single hole and shaft seeat is precision machined to further guarantee the stability and efficient running.
* Configuration upgrades or appearance design modifications of the machine are subject to change without notice
Drum Wood Chipper Specification
| Model | LDBX 216 | LDBX 218 | LDBX 2113 | LDBX 217 (Veneer) | LDBX 2110 (Veneer) | LDBX 2113D |
|---|---|---|---|---|---|---|
| ||||||
| Width | 600 mm | 800 mm | 800 mm | 600 mm | 1000 mm | 1000 mm |
| Range | 4000 mm | 6000 mm | 8000 mm | 6000 mm | 8000 mm | 10000 mm |
| Belt Material | Composite Nylon 4 | Composite Nylon 4 | Composite Nylon 5 | Composite Nylon 4 | Composite Nylon 5 | Composite Nylon 4 |
| Conveyor Type | ||||||
| ||||||
| Feeding Roller | 4 PCs, 2 sets | 4 PCs, 2 sets | 4 Pairs, 8 sets | Force Feeding, Auto Lift | Force Feeding, Auto Lift | Force Feeding Unit |
| Feeding Power | 3 + 4 kW | 4 + 5 kW | 7.5 kW*2 | 4 + 5 kW | 5.5 kW + 7.5 | 7.5 kW*2 |
| Main Power | 55 kW | 110 kW | 220 kW | 75 kW | 185 kW | 280 kW |
| Initiation | Star-Delta | Star-Delta | Soft Starter | Star-Delta | Soft Starter | Soft Starter |
| Capacity | 5-8 t/h | 8-15 t/h | 20-30 t/h | 8-10 t/h | 15-20 t/h | 20-30 t/h |
| Inlet Size | 500*230 mm | 700*300 mm | 700*450 mm | 500*300 mm, Auto Lift | 1000*400 mm, Auto Lift | 1000*450 mm, Auto Lift |
| Max Wood Diameter | φ220 mm | φ280 mm | φ420 mm | φ300 mm (Veneer) | φ350 mm (Veneer) | φ350 mm (Veneer) |
| Blade Quantity | 3 PCs + 1 PC | 3 PCs + 1 PC | 3 PCs + 1 PC | 3 PCs + 1 PCs | 6 PCs + PCs | |
| Blade Lifetime | 800-1000 hours | 800-1000 hours | 800-1000 hours | 1400-1500 hours | 1400-1500 hours | |
| Blade Material | 555SiCr alloy steel | 555SiCr alloy steel | 555SiCr alloy steel | | ||
| Rotor Diameter | ||||||
| Rotor Rotation | 660 rpm | 600 rpm | 500 rpm | 660 rpm | 530 rpm | |
| Chip Size | 30-50 mm | 30-50 mm | 30-50 mm | 30-50 mm | 30-50 mm | 30-50 mm |
| Gross Weight | 4130 kg | 7000 kg | 12840 kg | 5150 kg | 10635 kg | 10635 kg |
| Overall Dimension | 1800*1900*1510 mm | 2200*2150*1850 mm | 3700*2520*2150 mm | 1900*2050*1900 mm | 3530*2550*2210 mm | 3530*2550*2210 mm |
| ||||||
| Pump Power | 1.5 kW | 1.5 kW | 4 kW | 1.5 kW | 3 kW | |
| Tank Volume | 30L | 30L | 120L | 30L | 120L | |
| ||||||
| Power | 3kW | 3kW | 5.5kW | 3kW | 3.5kW | 3.5kW |
| Width | 600 mm | 800 mm | 1000 mm | 600 mm | 800 mm | 800 mm |
| Length | 8000 mm | 1000 mm | 11000 mm | 8000 mm | 10000 mm | 10000 mm |
| Belt Material | Non-slip Rubber | Non-slip Rubber | Non-slip Rubber | Non-slip Rubber | Non-slip Rubber | |
| ||||||
Advanced Fine Wood Chipper Specification
| Model | LDBX 216 - PF | LDBX 217 - PF (veneer) | LDBX 218 - PF | LDBX 2113 - PF | LDBX 2110-PF (veneer) |
|---|---|---|---|---|---|
| |||||
| Width | 600 mm | 600 mm | 800 mm | 800 mm | 800 mm |
| Range | 6000 mm | 8000 mm | 8000 mm | 8000 mm | 8000 mm |
| Belt Material | | ||||
| Conveyor Type | Split-slot type | Split-slot type | | ||
| |||||
| Feeding Roller | 4 PCs, 2 sets | Force Feeding, Auto Lift | 4 PCs, 2 sets | 4 Pairs, 8 sets | 4 Pairs, 8 sets |
| Feeding Power | 3 + 4 kW | 4 + 5 kW | 4 + 5 kW | 7.5 + 7.5 kW | 7.5 + 5.5 kW |
| Main Power | 55 kW | 75 kW | 110 kW | 220 kW | 185 kW |
| Initiation | Soft Starter | ||||
| Capacity | 1.5 T/h | 2-2.5 T/h | 3 T/h | 6-8 T/h | 4-5 T/h |
| Inlet Size | 500*230 mm | 500*300 mm, Auto Lift | 700*300 mm | 700*450 mm | 700*450 mm, Auto Lift |
| Max Wood Diameter | φ220 mm | φ300 mm (Veneer) | φ280 mm | φ420 mm | φ400 mm (Veneer) |
| Blade Quantity | | ||||
| Blade Lifetime | | ||||
| Blade Material | | ||||
| Rotor Diameter | φ600 mm | φ600 mm | φ800 mm | φ1300 mm | φ1100 mm |
| Rotor Rotation | 660 rpm | 660 rpm | 600 rpm | 500 rpm | 500 rpm |
| Special Notice | | ||||
| Chip Size | | ||||
| Gross Weight | 4130 kg | 5150 kg | 7000 kg | 12840 kg | 9900 kg |
| Overall Dimension | 1800*1900*1510 mm | 1900*2050*1900 mm | 2200*2150*1850 mm | 3700*2520*2150 mm | 3700*2520*2150 mm |
| |||||
| Pump Power | 1.5 kW | 1.5 kW | 1.5 kW | 4 kW | 4 kW |
| Tank Volume | 30L | 30L | 30L | 120L | 120L |
| |||||
| Power | 3kW | 3kW | 3kW | 5.5 + 3 kW | 5.5 + 3 kW |
| Width | 600 mm | 600 mm | 800 mm | 800 mm | 800 mm |
| Length | 10000 mm | 10000 mm | 10000 mm | 11000 mm | 11000 mm |
| Belt Material | | ||||
| |||||
